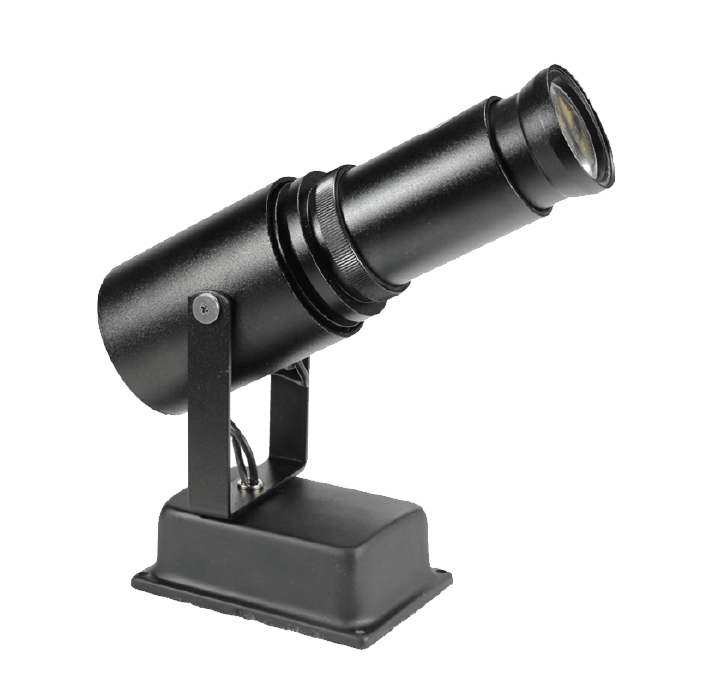

30W Gobo Projector, Rotate (LE-30)
SPECIFICATION
- Lamp: LED 30W
- Light color: cool white
- Life: 30,000hrs
- Color: black
- Ambient temp. range: -4°F to 122°F (-20°C to 50°C)
- Power supply: 85-265V/ 50Hz
- Lumens: 2400
- Color temperature: 6500K
- Default beam: 0.3 (project diameter of image = projection distance * 0.3)
- Dimmable: No
- Dimension: 260*200*90mm
- Net weight: 3lb
- Housing: Aluminum alloy
PROJECTION RANGE
The maximum projection range is influenced by different brightness environments.
- Bright environment - 16ft
- Dim environment - 20ft
- Dark environment - 29ft
GOBO DIMENSIONS
- Material: glass
- Size: 37mm(outer diameter), 27mm(image diameter)
PACKAGE CONTENTS
- 1* Gobo projector
- 1* Remote control
- 1* Instruction manual
- 1* Gobo custom service card
Projection Range For Reference
MODEL COMPARISON
| SPECIFICATION | |||
| Model |
Beam (Project diameter of image = Projection distance * n) |
||
| Default | Mult. | ||
| ST-15(15W) | 0.25 | none | |
| ST-40(40W) | 0.25 | ||
| DS-20(20W) | 0.35 | Indoor: 0.2, 1.1-1.4(zoom) Outdoor: 0.2, 1.1 |
|
| DS-40(40W) | 0.35 | ||
| DS-80(80W) | 0.35 | ||
| DS-150(150W) | 0.35 | ||
| DS-200(200W) | 0.35 | ||
| LE-65(65W) | 0.2 | 0.1, 0.3, 0.4, 0.8 (LE-H80 not support 0.8) |
|
| LE-80(80W) | 0.2 | ||
| LE-H80(80W) | 0.2 | ||
| LE-120(120W) | 0.2 | ||
| LE-200(200W) | 0.2 | ||
| PROJECTION RANGE | |||
| Model | Bright | Dim | Dark |
| ST-15(15W) | 10ft | 15ft | 20ft |
| ST-40(40W) | 20ft | 40ft | 60ft |
| DS-20(20W) | 10ft | 17ft | 23ft |
| DS-40(40W) | 20ft | 33ft | 43ft |
| DS-80(80W) | 27ft | 43ft | 59ft |
| DS-150(150W) | 50ft | 82ft | 115ft |
| DS-200(200W) | 66ft | 105ft | 148ft |
| LE-30(30W) | 16ft | 20ft | 29ft |
| LE-65(65W) | 45ft | 65ft | 130ft |
| LE-80(80W) | 65ft | 130ft | 260ft |
| LE-H80(80W) | 65ft | 130ft | 260ft |
| LE-120(120W) | 130ft | 260ft | 390ft |
| LE-200(200W) | 260ft | 390ft | 450ft |
FREQUENTLY ASKED QUESTIONS (FAQs)
How to choose a suitable gobo projector?
For each model, we have the best distance for your reference. You can choose the power according to your projecting distance and brightness of the environment. Then you can decide the features, such as static or rotating indoor or outdoor, etc.
How to Order your Custom Gobo from instagobo.com
Step 1: Please gather the following information prior to proceed your order:
- Supply the original artwork or HD picture to us. The best file format for gobo production is vector format (such as EPS, AI). High-resolution images ( photos more than 2000 pixels are fine for the final design) just do fine. (Email: support@instagobo.com)
- Our designer edits the raw file to be finished available artwork.
- Send to our gobo technology dept. to produce the gobo.
- Gobo type: Glass
Step 2: Place the order online directly, no need to create an account to login.
Step 3: We will process your order and ship the custom gobo to you after the gobo design confirmed.
Step 3: We will process your order and ship the custom gobo to you after the gobo design confirmed.
WHY the glass gobo?
A "Gobo" is a stencil or template placed inside or in front of a light source to control the shape of the emitted light. The term "gobo" is an acronym that stands for "GOes Before Optics", describing the location where it needs to be positioned in the light path of a lighting fixture. Gobos can be used for multiple projects; for example they can project breakup patterns to create texture on walls or even project your company logo.
There are two types of gobos: steel and glass.
Here are numerous benefits with glass gobos, one having a long life span. One more benefit of glass is that complicated images can be generated with very excellent quality. One more advantage is glass will certainly not distort or melt when used continuously.
Notice: We recommend all gobos with image size outer diameter 37.5mm to fit in glass gobo.
How do you determine the number of colors for glass gobos?
One - Color: Color + White OR Black
Two - Colors: Color + Color + White or Black background
Three Colors: Color + Color + Color + Black OR Black
Full Colors: Four Colors or more
How long did it take to get glass gobos?
The glass gobo usually takes 3-4 working days to manufacture and 3~5 days for delivery. Instagobo.com only use courier services (such as DHL, FedEx, UPS) to arrange the shipment.
Free shipping for products below 6kg. Over 6kg requires additional shipping charges.
