ECO Lines 80 Virtual Line Projector

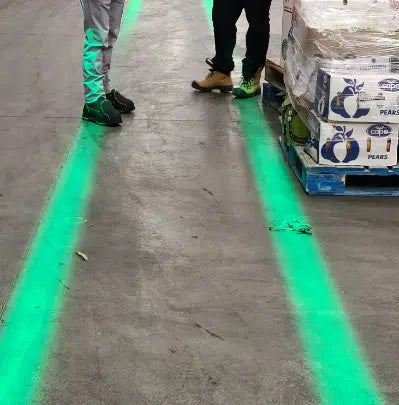

Line Projector for Lanes, Walkways and Docks ECO Lines projectors are perfect for pedestrian safety, reducing accidents by increasing the facility awareness with visible walkways, aisles, or lanes. They reduce accidents, and unplanned work stoppages for safety signs maintenance.
How To Order:
Enter your requirements in the order comments. We will verify your information and get back to you with any questions. Once we selected the correct product, we will contact you with the exact product specifications. Once you're ready, we'll proceed with your order.
Highlights:
- Designed for rugged environments
- Wide temperature and power range
- Adjustable line length option
- Line Length: up to 48ft.
- Line Width: 3 to 6in.
Specifications:
- Projects a 3 to 6 inch wide line on any surface
- Line length Options: 2 x Distance, 1.5 x Distance, 1 x Distance
- Available Projection Colors: Yellow, Green, Blue, Red
- Working Lifetime: 40,000h
- Operating Temperature: -13° to 122°F (-25°C to 50°C)
- Line Power: AC Power Supply 100-240V/277VAC, 50/60Hz
- Input Power/Current: 90W, 1A/115V, 0.4A/277V, 80W
- Housing: Aluminum anodized
- Weight: 11 lbs
Line length:
ECO Lines LED projectors project fixed line lengths that depend on two factors: Projection Distance and Fan Angle. The larger the fan angle and the projection distance, the longer the line. There are currently three fan angles, 90°, 73°, and 53°.
Fan Angles:
- 90°: Line length = 2x distance
- 73°: Line length = 1.5x distance
- 53°: Line length = 1x distance
Photometrics for Amber and Green Line Colors:
(Red and Blue color data in preparation)
- AVAILABILITY:In Stock
- BRAND:GoboSource
- MODEL:EL-80
USD$499.00
Includes a line limiter in your order to shorten or lengthen your lines for more precise measurements.
LED line projectors have over 40,000 hour life cycle. Line thickness is 3-5 inches at a 20ft installation height.
When selecting a lens, the multiplier is according to the installation height. ie: 20ft installation height: 1 x lens = 20ft line | 1.5x lens = 30ft line | 2 x lens = 40ft line.
| Weight | 12 lbs |
|---|---|
| Dimensions | 15 × 12 × 3.3 cm |
| Lens |
1x Lens, 1.5x Lens, 2x Lens |
Projection Range For Reference
MODEL COMPARISON
| SPECIFICATION | |||
| Model |
Beam (Project diameter of image = Projection distance * n) |
||
| Default | Mult. | ||
| ST-15(15W) | 0.25 | none | |
| ST-40(40W) | 0.25 | ||
| DS-20(20W) | 0.35 | Indoor: 0.2, 1.1-1.4(zoom) Outdoor: 0.2, 1.1 |
|
| DS-40(40W) | 0.35 | ||
| DS-80(80W) | 0.35 | ||
| DS-150(150W) | 0.35 | ||
| DS-200(200W) | 0.35 | ||
| LE-65(65W) | 0.2 | 0.1, 0.3, 0.4, 0.8 (LE-H80 not support 0.8) |
|
| LE-80(80W) | 0.2 | ||
| LE-H80(80W) | 0.2 | ||
| LE-120(120W) | 0.2 | ||
| LE-200(200W) | 0.2 | ||
| PROJECTION RANGE | |||
| Model | Bright | Dim | Dark |
| ST-15(15W) | 10ft | 15ft | 20ft |
| ST-40(40W) | 20ft | 40ft | 60ft |
| DS-20(20W) | 10ft | 17ft | 23ft |
| DS-40(40W) | 20ft | 33ft | 43ft |
| DS-80(80W) | 27ft | 43ft | 59ft |
| DS-150(150W) | 50ft | 82ft | 115ft |
| DS-200(200W) | 66ft | 105ft | 148ft |
| LE-30(30W) | 16ft | 20ft | 29ft |
| LE-65(65W) | 45ft | 65ft | 130ft |
| LE-80(80W) | 65ft | 130ft | 260ft |
| LE-H80(80W) | 65ft | 130ft | 260ft |
| LE-120(120W) | 130ft | 260ft | 390ft |
| LE-200(200W) | 260ft | 390ft | 450ft |
FREQUENTLY ASKED QUESTIONS (FAQs)
How to choose a suitable gobo projector?
For each model, we have the best distance for your reference. You can choose the power according to your projecting distance and brightness of the environment. Then you can decide the features, such as static or rotating indoor or outdoor, etc.
How to Order your Custom Gobo from instagobo.com
Step 1: Please gather the following information prior to proceed your order:
- Supply the original artwork or HD picture to us. The best file format for gobo production is vector format (such as EPS, AI). High-resolution images ( photos more than 2000 pixels are fine for the final design) just do fine. (Email: support@instagobo.com)
- Our designer edits the raw file to be finished available artwork.
- Send to our gobo technology dept. to produce the gobo.
- Gobo type: Glass
Step 2: Place the order online directly, no need to create an account to login.
Step 3: We will process your order and ship the custom gobo to you after the gobo design confirmed.
Step 3: We will process your order and ship the custom gobo to you after the gobo design confirmed.
WHY the glass gobo?
A "Gobo" is a stencil or template placed inside or in front of a light source to control the shape of the emitted light. The term "gobo" is an acronym that stands for "GOes Before Optics", describing the location where it needs to be positioned in the light path of a lighting fixture. Gobos can be used for multiple projects; for example they can project breakup patterns to create texture on walls or even project your company logo.
There are two types of gobos: steel and glass.
Here are numerous benefits with glass gobos, one having a long life span. One more benefit of glass is that complicated images can be generated with very excellent quality. One more advantage is glass will certainly not distort or melt when used continuously.
Notice: We recommend all gobos with image size outer diameter 37.5mm to fit in glass gobo.
How do you determine the number of colors for glass gobos?
One - Color: Color + White OR Black
Two - Colors: Color + Color + White or Black background
Three Colors: Color + Color + Color + Black OR Black
Full Colors: Four Colors or more
How long did it take to get glass gobos?
The glass gobo usually takes 3-4 working days to manufacture and 3~5 days for delivery. Instagobo.com only use courier services (such as DHL, FedEx, UPS) to arrange the shipment.
Free shipping for products below 6kg. Over 6kg requires additional shipping charges.
